Instructions

DisplayLink Manager – Microsoft Windows Installation Instructions

Check out our simple, easy-to-understand instructions on how to set up
Microsoft Windows (Microsoft)

Instructions

See here for a more extensive users guide for the Triple 4K Display Docking Station.

1. Go to https://www.synaptics.com/products/displaylink-graphics/downloads/windows

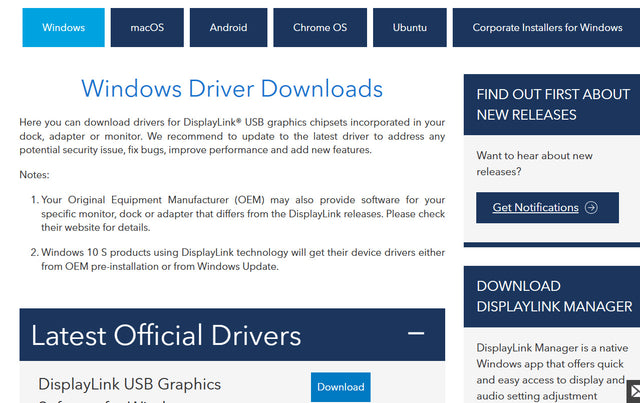

DisplayLink website, Windows Driver Downloads page with the Windows tab selected and a Download button under Latest Official Drivers for DisplayLink USB Graphics Software for Windows.

2. Click Agree. After reading the terms.

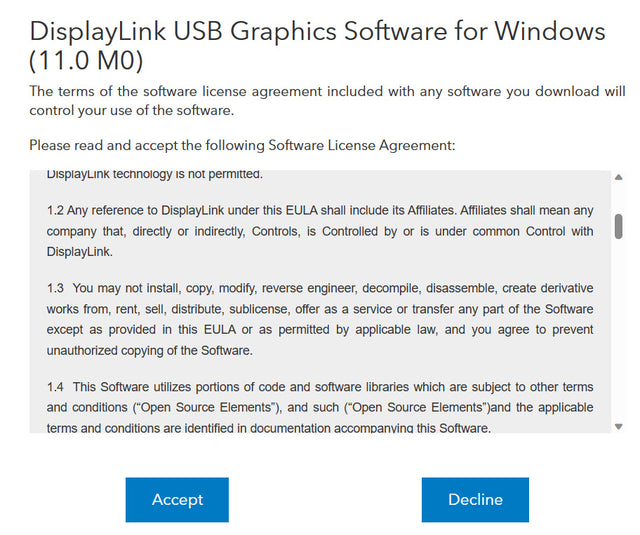

Step screenshot: DisplayLink USB Graphics Software for Windows (11.0 M0) license agreement page with Accept and Decline buttons.

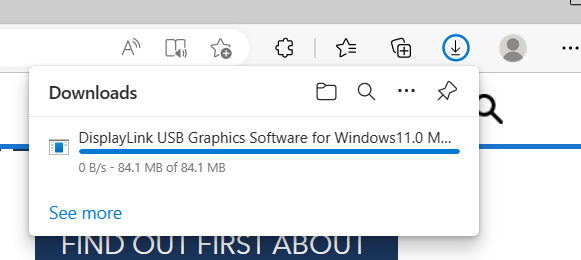

3. Download will show in the top right corner of the Window.

Microsoft Edge Downloads panel showing the completed download DisplayLink USB Graphics Software for Windows11.0, 84.1 MB of 84.1 MB.

4. Open the .exe file once is has finished downloading.

5. You will get a pop up for install Click Yes. DisplayLink Core Software installs.

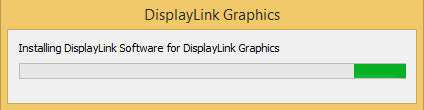

Windows DisplayLink Graphics window with a progress bar nearly complete: Installing DisplayLink Software for DisplayLink Graphics.

6. The System Compatibility Check then runs.

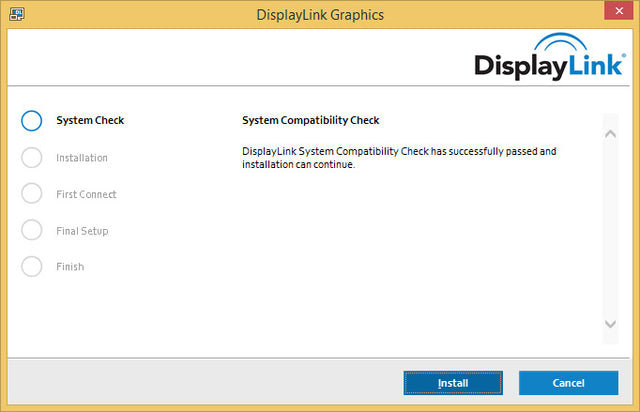

DisplayLink Graphics installer on Windows, System Check step: DisplayLink System Compatibility Check has successfully passed and installation can continue. Buttons: Install, Cancel.

7. Click Install (if the System Compatibility Check passes). If the System Compatibility Check does not pass (see below for an example) please see this article for more information. 

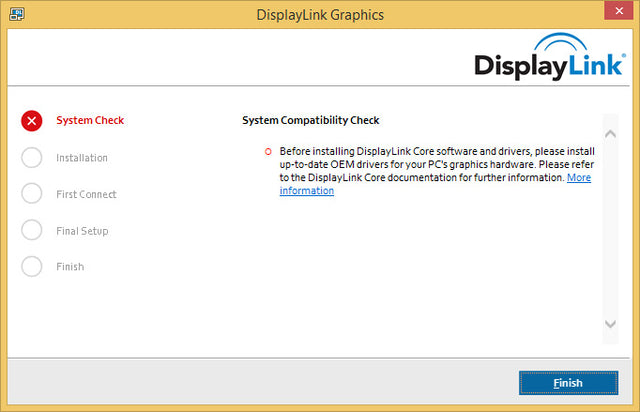

Step screenshot: DisplayLink Graphics installer on Windows failing the System Check step, asking you to install up-to-date graphics drivers first.

8. Connect your DisplayLink enabled device.

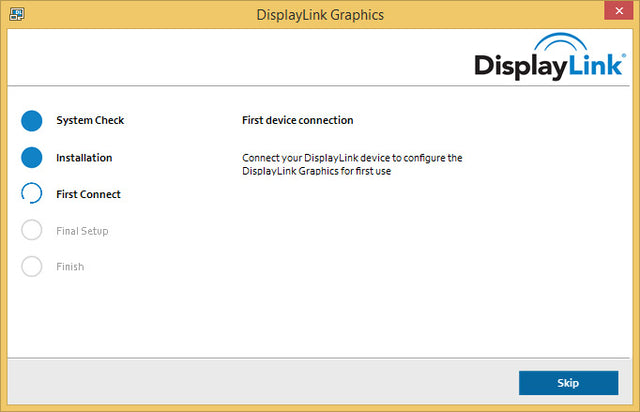

DisplayLink Graphics setup on Windows at the First Connect step, after System Check and Installation: Connect your DisplayLink device to configure the DisplayLink Graphics for first use. Skip button.

9. Upon detection of a DisplayLink enabled device DisplayLink Graphics installs.

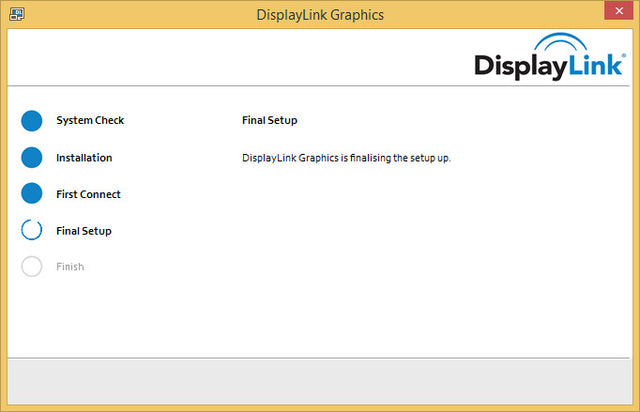

Windows DisplayLink Graphics setup at the Final Setup step, with System Check, Installation and First Connect complete: DisplayLink Graphics is finalising the setup up.

9. The application installer will notify you when the installation process was successful. Please select the ‘Close’ button to close the application installer.

Step screenshot: Install DisplayLink Manager window on the Summary step reading The installation was successful, with the Close button.

10. You are then informed when installation of DisplayLink software has completed.

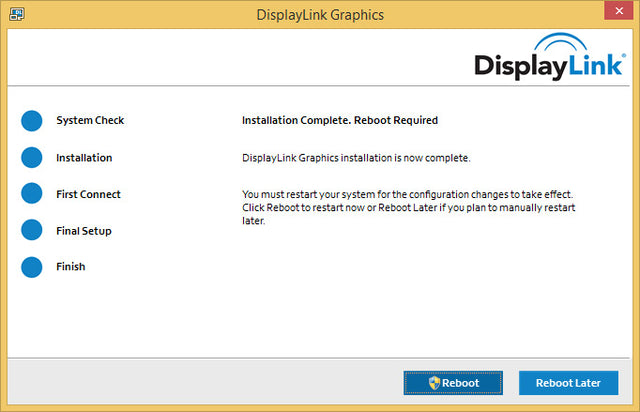

DisplayLink Graphics installer on Windows: Installation Complete. Reboot Required. You must restart your system for the changes to take effect. Buttons: Reboot, Reboot Later.
  1. Reboot your PC to complete the installation.

YOU CAN ALSO INSALL THE SOFTWARE THROUGH MICROSOFT STORE

  1. Click the Windows icon
  2. Click Microsoft Store
  3. Type in “DisplayLink Manager”
  4. Click “Get”
  5. Software will download and Install.
  6. Select open
  7. You should see one of the following screens (Monitor listings may differ depending on your setup)
